PREDL FLEXLINER - TRENCHLESS MANHOLE REHABILITATION

POLYUREA SYNTHETIC MATERIAL

title

Trenchless manhole rehabilitation with the PREDL-FLEXLINER system, made out of wastewater-resistant synthetic material.

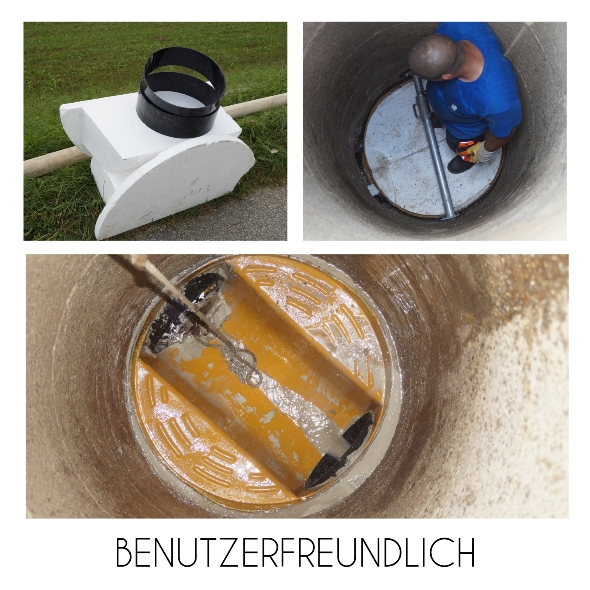

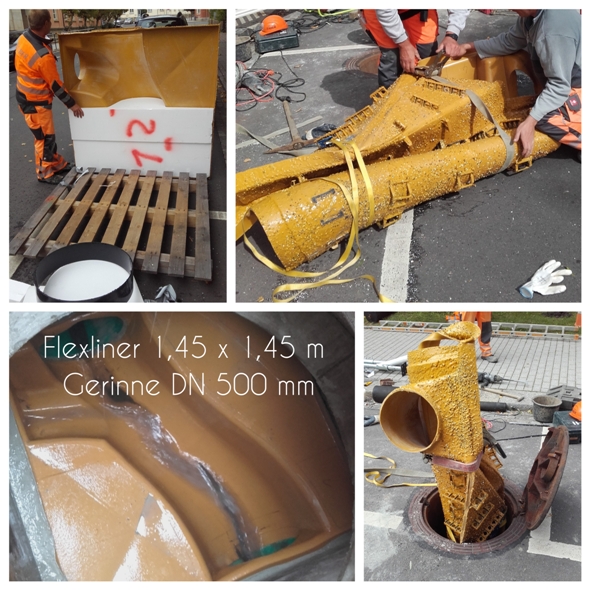

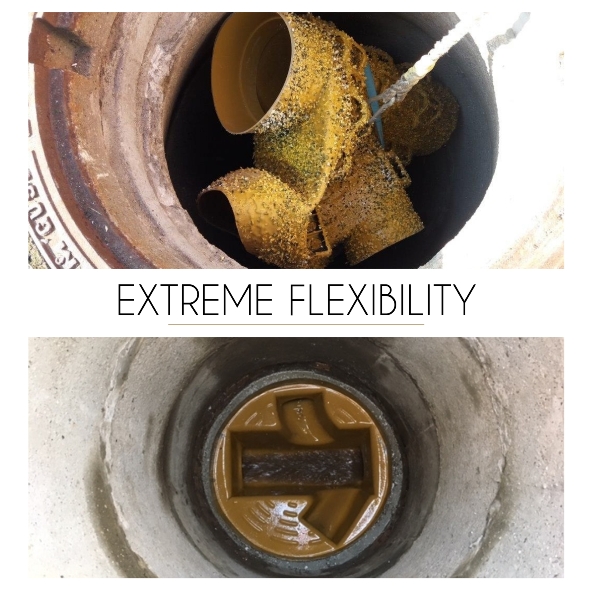

With the PREDL-FLEXLINER, a user-friendly manhole rehabilitation is possible within a short time. The manhole base liner is inserted through the cone in the manhole in one piece and in a non-destructive manner and unfolded to the original size once in the manhole.

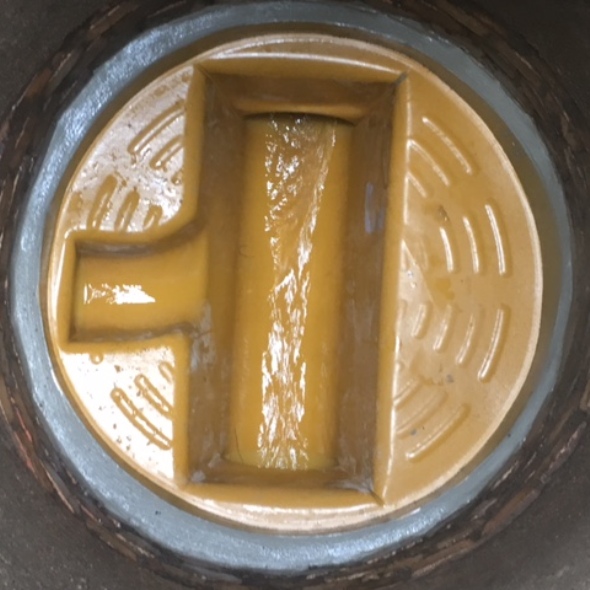

Rehabilitation with the PREDL-FLEXLINER provides a new, permanently protected manhole base. A perfect cheaper alternative to the complete replacement of the manhole structure.

By taking a 3D laser scan of the old manhole, the new FLEXLINER is designed based on the scan data.

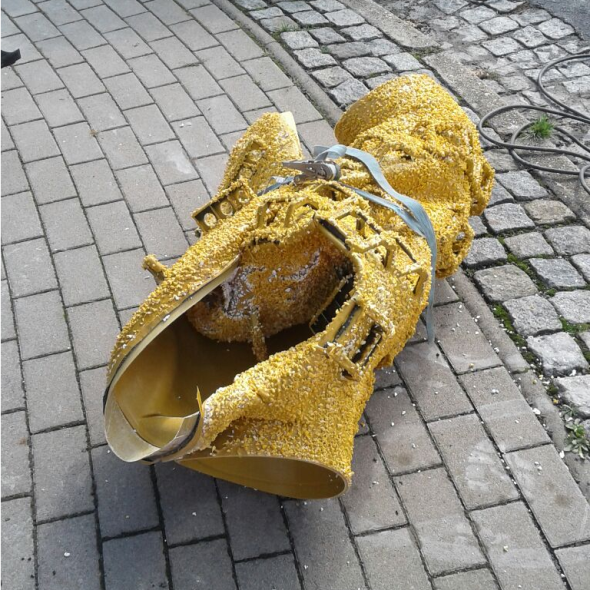

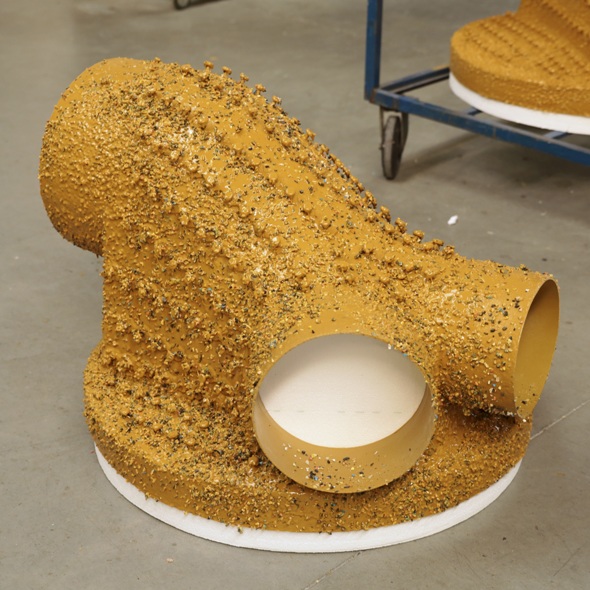

To create a permanent connection between the FLEXLINER and the old manhole, the FLEXLINER is backfilled with a special highly modified grout (FLEXgrout). The knubs and granules on the back of the FLEXLINER guarantee a strong and permanent bond to the grout. The pipe connection is made using a stainless steel sleeve.

Further vertical rehabilitation of the entire manhole structure can be done with PP-CORPROTECT, which results a completely protected system.

ADVANTAGES:

  • corrosion proof and H2S resistant
  • no digging work
  • I&I resistang
  • Utilizes 3D scanning
  • quick and simple installation through the cone
  • more environmentally friendly than other rehabilitation methods
  • no more maintanance, lifespan of several decades

Product Brochure

Please find more detailed information in our product folder:

» download Folder

Details

3D Laserscan

3D Laserscan

The most modern possibility for the exact recording of the data of the old manhole. Digitalisation of the old manhole as a 3D model.

INCL. STYROFOAM-NEGATIVE

INCL. STYROFOAM-NEGATIVE

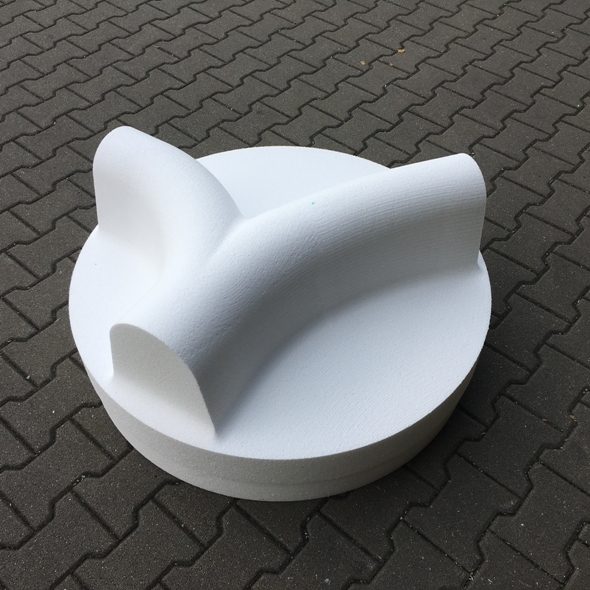

The polystyrene model which has been milled on the basis of the scanned data, serves as a mould for the production of the FLEXLINER and for its stabilisation before casting.

IN ONE PIECE AND IN A NON-DESTRUCTIVE MANNER

IN ONE PIECE AND IN A NON-DESTRUCTIVE MANNER

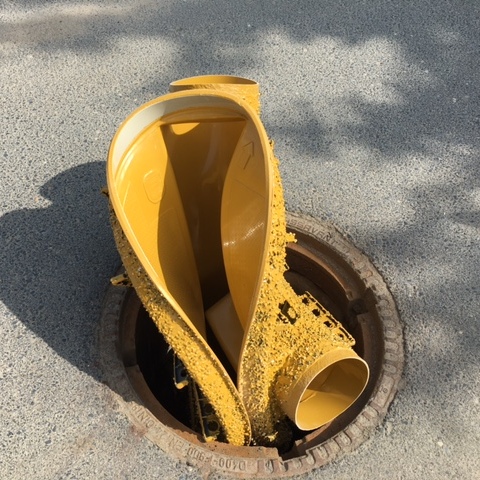

The PREDL-FLEXLINER is manufactured on the basis of chemical-resistant polyurea and ca be inserted into the shaft completely without splitting.

FLEXLINER pipe connection

FLEXLINER pipe connection

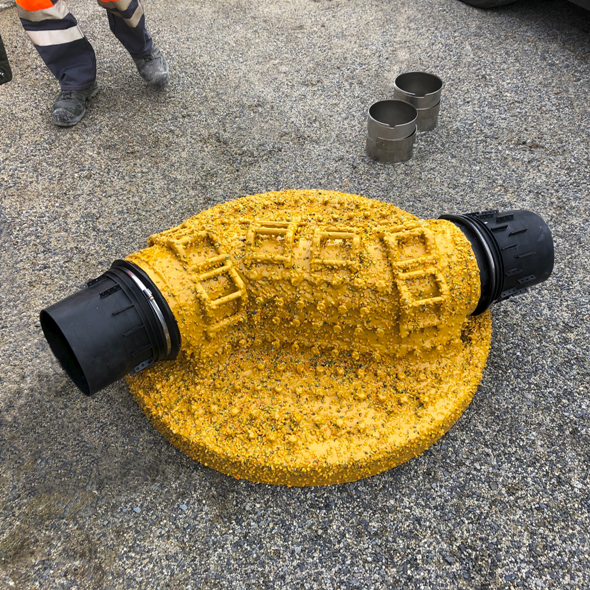

The FLEXLINER® pipe connection is executed using stainless steel clamping sleeve and EPDM seal.
